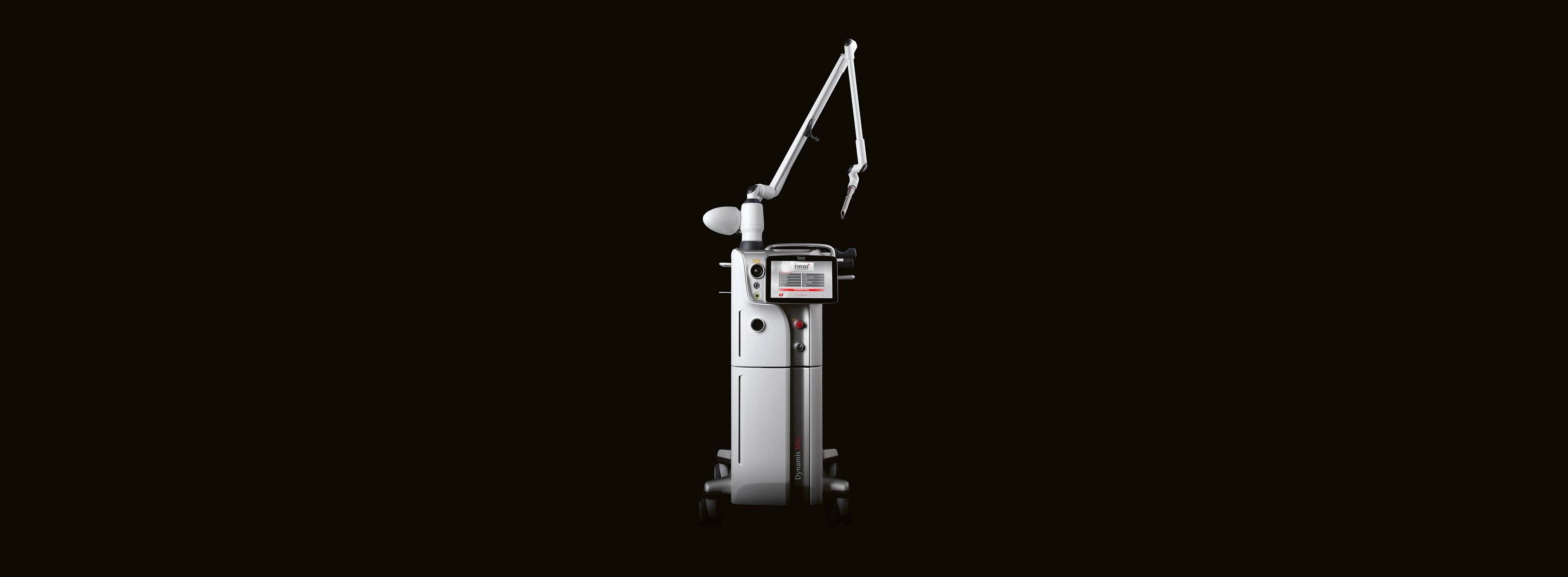

The Ultimate Face & Body Laser System
Fotona’s Dynamis® Max represents the next generation in multi-application laser technology, delivering unmatched versatility and control. With more than 100 full-face & body treatment options, it empowers practitioners to offer customized procedures with confidence and boost their practice growth.
Key Treatments
Before & After
Fotona4D®
Courtesy of: Adrian Gaspar, MD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Fotona4D®
Courtesy of: Dr Anna Dimitrieva
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
LipLase®
Courtesy of: Courtesy of dr Harvey Shiffman
Laser source: Non-Ablative Er:YAG
Skin Resurfacing
Courtesy of: Robin Sult, R.N.
Laser source: Er:YAG (2940 nm)
TightSculpting®
Courtesy of: Adrian Gaspar, MD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Active Acne Treatment
Courtesy of: Chua Cheng Yu, MD
Laser source: Nd:YAG (1064 nm)
Perfection in Aesthetics & Dermatology
- Includes Nd:YAG & Er:YAG wavelengths, each with multiple treatment modalities
- More than 100 pre-programmed treatment options
- Ergonomic handpieces and unique scanners for optimal coverage and speed
- Integrated revolutionary DMC™ skin cooling
- Enables minimally-invasive facial and body treatments that are fast and effective, with natural-looking results
- Tap & Go functionality—quick presets for an easy start!
- Provides exceptional ROI and valuable practice-building opportunities
Technology
DMC™ Skin Cooling - Fotona’s patented skin-cooling technology that improves patient comfort and enhances safety, without consumables.
Advanced Skin Temperature Controls - Fotona's MatrixView® non-contact skin temperature sensor carefully monitors the patient's skin temperature during procedures to ensure comfort and control.
Dynamic Vacuum Technology - The Dynamis® Max laser system also incorporates integrated vacuum technology with dynamically controlled intermittent suction, a unique add-on that further elevates its remarkable versatility.
Higher Performance with Innovative Pulse Modes - Fotona's Dynamis® Max offers advanced scanners and fractional options for providing comprehensive aesthetic solutions.
Power and Speed for Efficiency - The superior power of the Dynamis® Max enables the use of large spot sizes and exceptionally high frequencies for faster and more efficient treatments.
Accessories

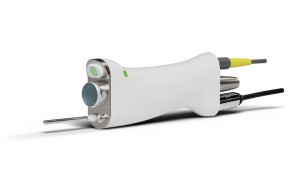

R35-Nx
Technology
Spot size: 2-20 mm
MatrixView®
Nd:YAG
Ideal for
Active acne, non-ablative rejuvenation, hair removal, vascular lesions, onychomycosis, warts removal

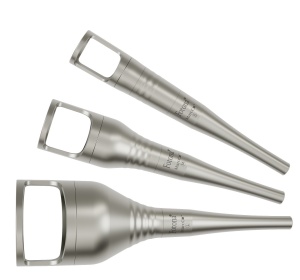

MarcCo®
Technology
Spot size: 10 mm (S), 24 mm (M), 43 mm (L)
Collimated
Full spot
Nd:YAG
Ideal for
ComfortLase™ - wound healing and pain management
MarcCo® S combined with the LA adapter is best suited for intraoral treatment.

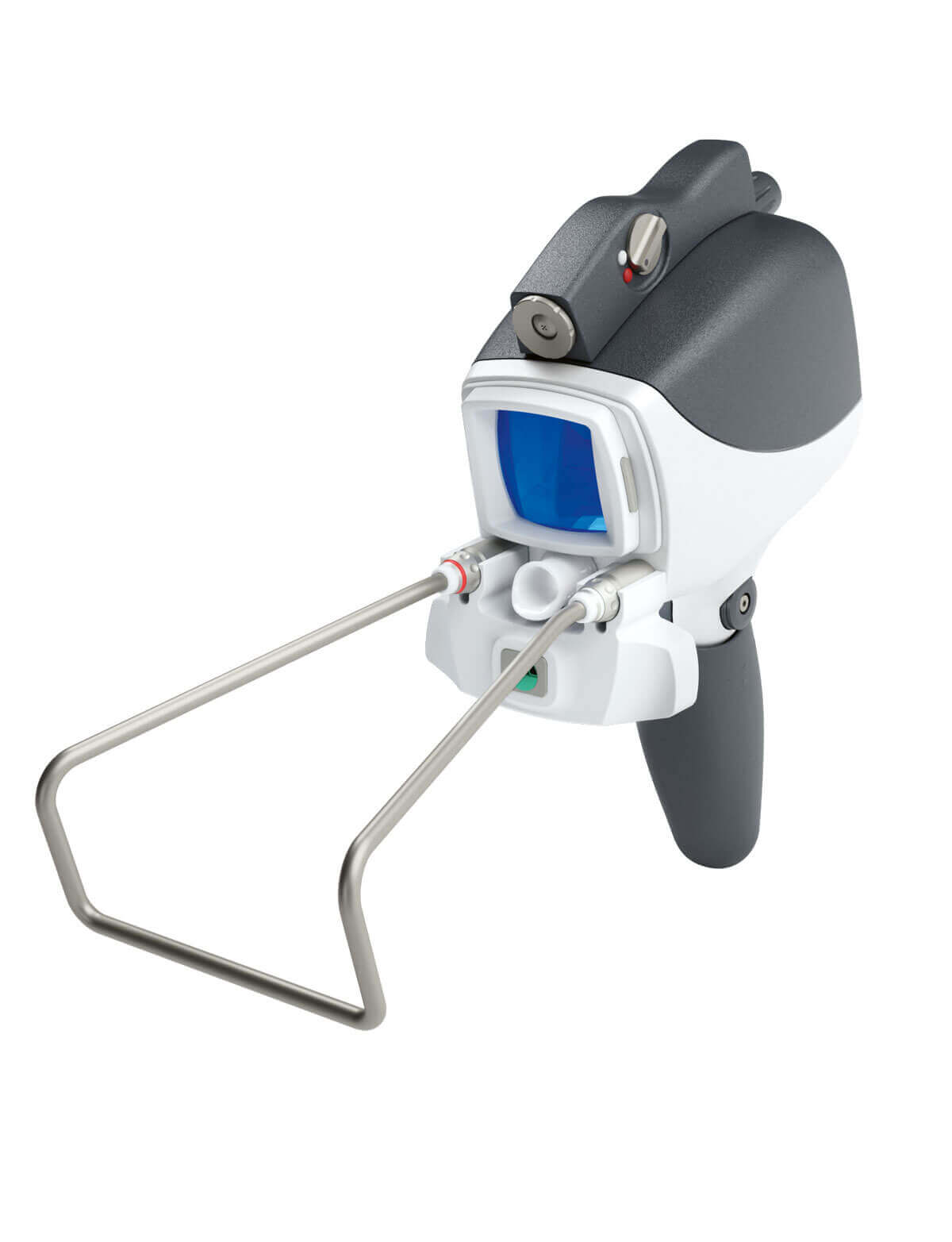

Nx-Runner Scanner
Technology
Spot sizes: 6, 9, 11 mm
Area 65 mm x 65 mm
FRAC3®, VERSA, Fotona PIANO®
DMC™, MatrixView®
Nd:YAG
Ideal for
Hair removal, TensorTight™, TightSculpting®

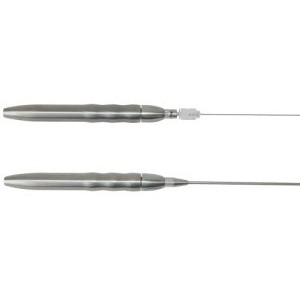

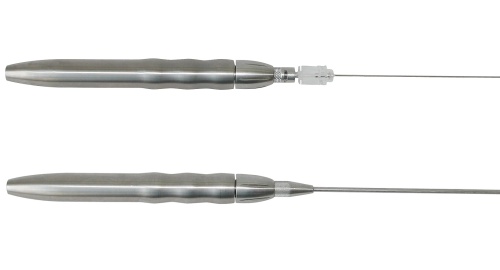

R27
Technology
Surgical handpiece
For 600 micron fibers
Nd:YAG
Ideal for
Laser-assisted lipolysis & liposuction

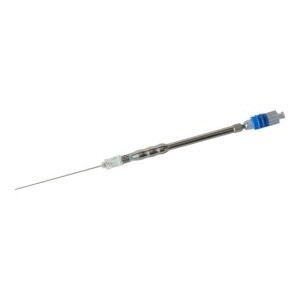

R27c
Technology
Small surgical handpiece
For 600 micron fibers
Nd:YAG
Ideal for
Laser-assisted lipolysis, hyperhidrosis, surgical applications

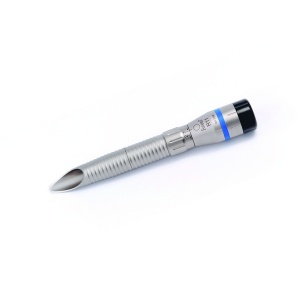

R11
Technology
Spot size: 2-7 mm
Full spot
Er:YAG
Ideal for
Fotona4D®, Fotona4D®Men, full-spot skin resurfacing, skin rejuvenation, benign lesions removal, ablation

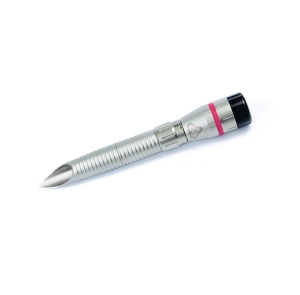

PS03X
Technology
Spot size: 2-7 mm
Patterned spot
Er:YAG
Ideal for
Fotona4D®, Fotona4D®Men, VectorLift®, SmoothEye®, LipLase®, HAIRestart®, patterned skin resurfacing, skin rejuvenation

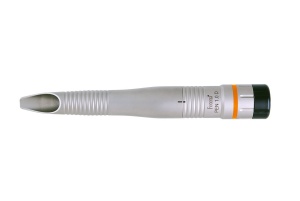

PEN 1.0 D
Technology
Spot size: 1 mm
Er:YAG
Ideal for
Microablation, soft-tissue surgery

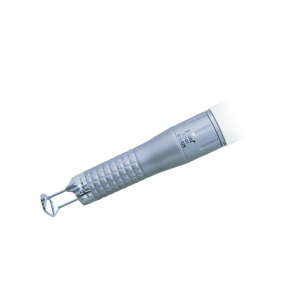

FS01
Technology
Spot size: 250 μm
Fractional
9 mm x 9 mm
81 spots
Er:YAG
Ideal for
Scar revision, fractional skin resurfacing

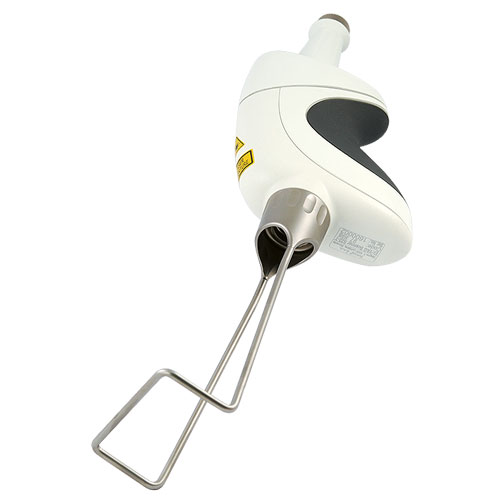

T-Runner with HoneyComb® optics*
Technology
Spot size: 7-8 mm
Area up to 80 mm x 80 mm
Full beam
Fotona SMOOTH® mode
Er:YAG
*Purchased separately
Ideal for
HoneyComb® Lift, TensorTight™, VectorLift®, OrangeLase™

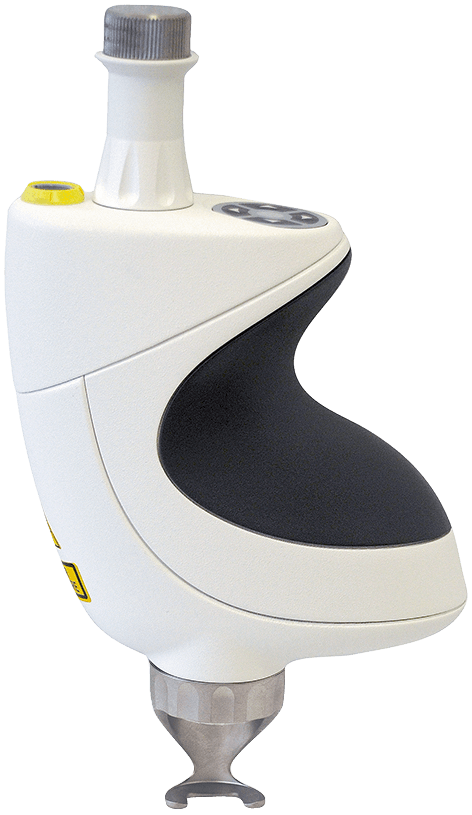

F-Runner
Technology
Spot size: 250 μm
Fractional
Area: 12 mm x 14 mm
Er:YAG
Ideal for
Scar revision, fractional resurfacing, Micro Laser Coring

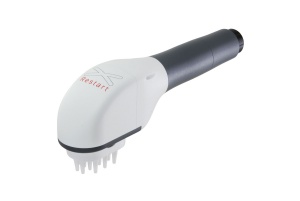

X-Restart
Technology
Spot size: 0.2 and 1.8 mm
Fractional and patterned
Area: 40 x 23 mm
Er:YAG
Ideal for
HAIRestart® (long spacer), fractional ablation (short spacer)

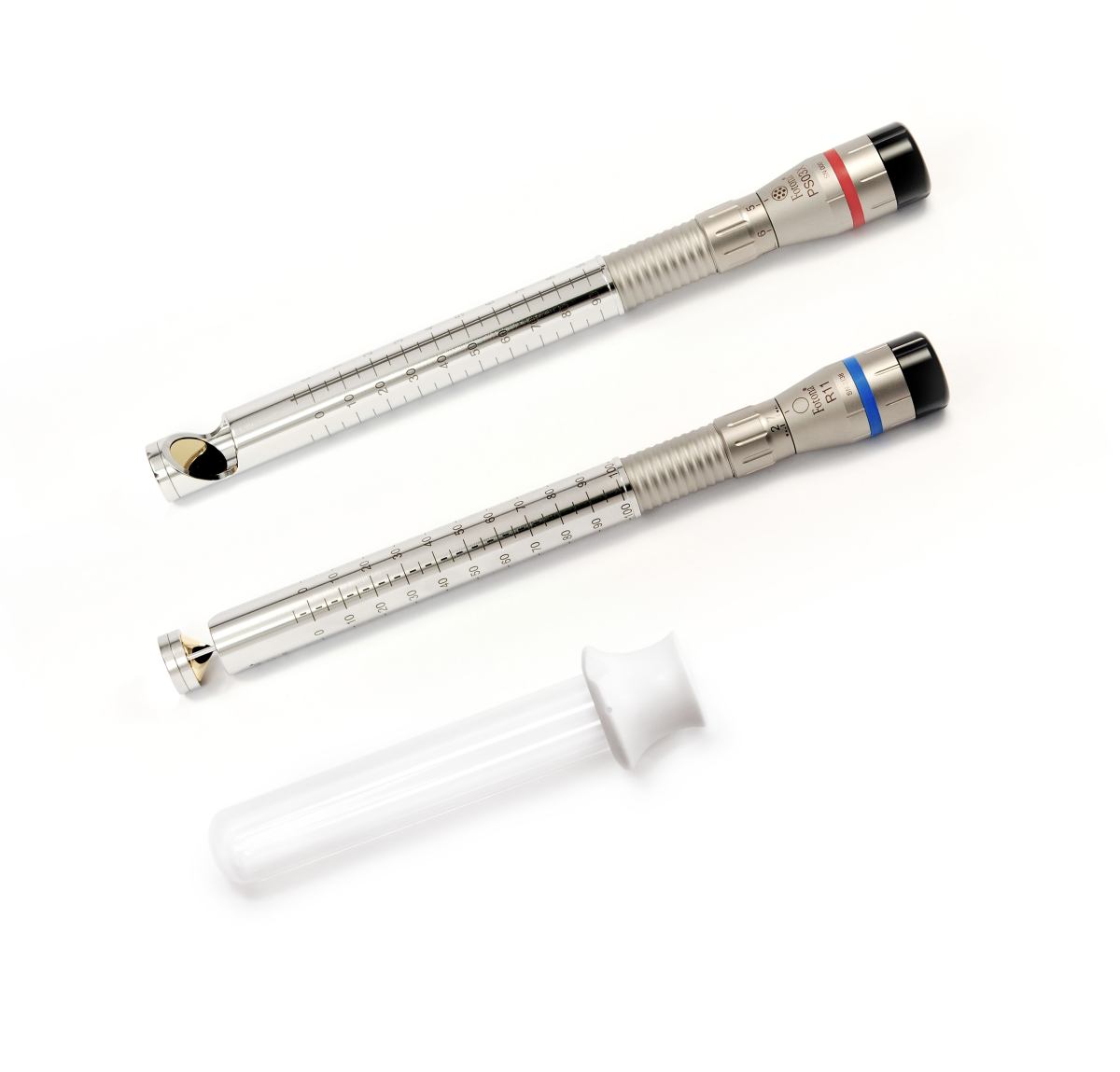

G-Set
Technology
Includes 90° angular and 360° circular golden-mirror titanium adapters, MClear single-use glass speculum, wired metal autoclavable speculum, R11 and PS03X handpieces
Ideal for
IncontiLase®, IntimaLase®, RenovaLase®, ProlapLase®

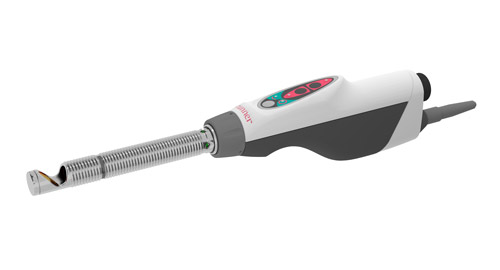

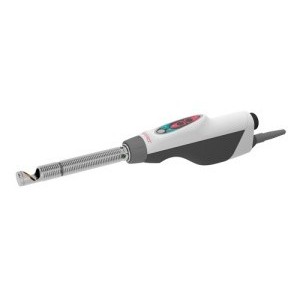

G-Runner
Technology
Robotic scanner for fully automated gynecological treatments. Used together with a single-use glass speculum GClear.
Ideal for
IncontiLase®, IntimaLase®, RenovaLase®, ProlapLase®

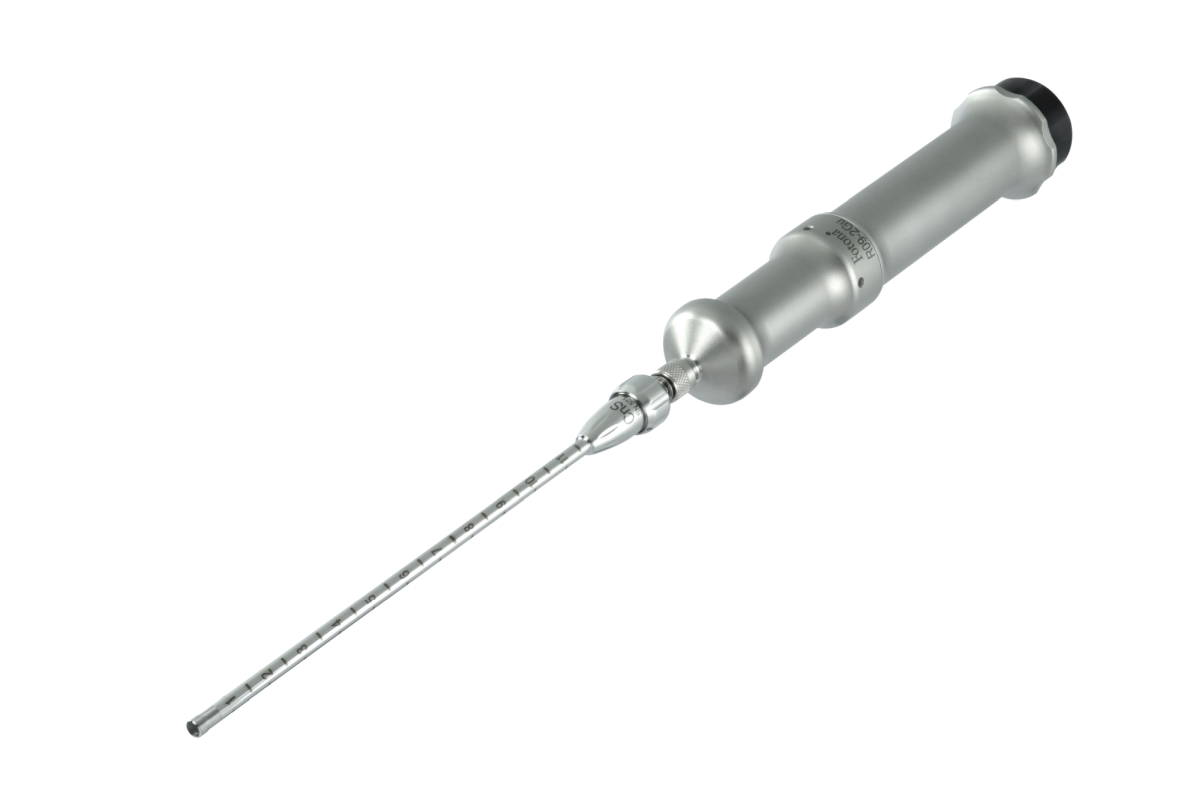

R09-2Gu
Technology
Spot size: 4 mm (at a distance of app. 1 cm)
Full spot
With a tube for gynecology
Ideal for
IncontiLase® Intra

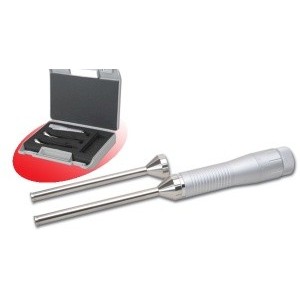

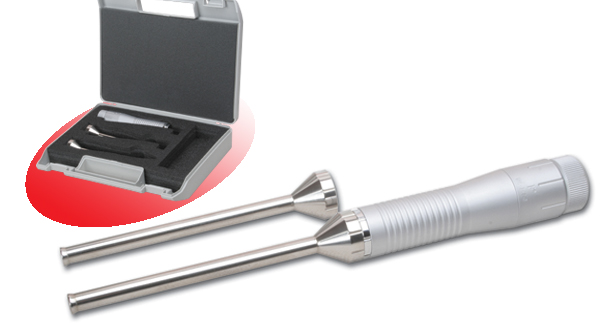

R09-2G
Technology
Spot size: 4 mm (at a distance of 0-5 cm)
Full spot
With a tube for gynecology
Ideal for
Cervical lesions
More
Scientific & Clinical Research
Scientific & Clinical Research Library: *
Fotona4D®
Histological Changes in Skin During the Process of Aging and Improvements Observed with the Use of Combined Laser Radiation. Natalia Shanina. J LA&HA - J Laser Health Acad 2018; 2018(1):S09. Read Full Text.
Correction of nasolabial folds wrinkle using intraoral non-ablative Er:YAG laser. Howyda ME, Khaled G. Journal of Cosmetic and Laser Therapy (2018). 20:6, 364-368. Read Full Text.
Optical coherence tomographic (OCT) evaluation of intraoral non-ablative erbium: YAG laser (SMOOTH mode) in rejuvenation of nasolabial folds; A prospective randomized split face comparative pilot study. Moftah N., Samy N., Allam R.S.H.M., El Tagy S.A.H., Abdelghani R. Skin Res Technol. 2019;00:1-8. Read Full Text.
Tightening of Facial Skin Using Intraoral 2940 nm Er:YAG SMOOTH Mode. Adrian Gaspar, Gustavo Alfaro Gasti. J LA&HA - J Laser Health Acad 2013; 2013(2):17-20. Read Full Text.
Intra- and Extraoral Treatment for Rejuvenation of the Nasolabial Fold and Perioral Wrinkles. Claudia M. Pidal. J LA&HA – J Laser Health Acad 2012, 2012(1), B20. Read Full Text.
Photo-Thermal Hormetic Rejuvenation with 1064 nm Nd:YAG PIANO Pulse Laser. Marini L, Alexiou A. J LA&HA - J Laser Health Acad 2012; 2012(1):75-79. Read Full Text.
The effect of intraoral 2,940nm nonablative Erbium:YAG laser on the rejuvenation of the upper lip: a pilot study. Natacha Quezada Gaón, Fernanda Binfa. Surg Cosmet Dermatol 2017;9(1):56-8. Read Full Text.
CLINICAL BULLETIN: PIANO Mode Nd:YAG Laser Skin Tightening. Taylor M. Journal of the Laser and Health Academy, Vol. 2013, No.2. Read Full Text.
CASE REPORT: Clinical experience with FRAC3® Non-ablative Skin Tightening. Gansel R. Journal of the Laser and Health Academy, Vol. 2012, No.1. Read Full Text.
New Skin Treatment Possibilities with PIANO Mode on an Nd:YAG Laser. Lukac M, Vizintin Z, Pirnat S, Nemes K. Journal of the Laser and Health Academy, Vol. 2011, No.1. Read Full Text.
Pixel Screen Technology and FRAC3® – A Full Spectrum of Laser Skin Rejuvenation Treatments. Gorjan M, Grad L, Lukac M. Journal of the Laser Health Academy, Vol. 2008, No.1 Read Full Text.
SmoothEye®
SmoothEye – Periocular Rejuvenation with Er:YAG SMOOTH Mode. Phillips T. J LA&HA - J Laser Health Acad 2018; 2018(1):CB05. Read Full Text.
Reduction of the Volume and Wrinkles under the Eyes using Non-Ablative 2940 nm Er : YAG Laser on the Lower Eyelid Palpebral Conjunctiva. Kim J, Zorman A. Journal of LA&HA. 2018;2018(1):36-38. Read Full Text.
Non-Surgical Periorbital Rejuvenation – A Holistic Approach. Lucas LC Chia. J LA&HA - J Laser Health Acad 2018; 2018(1):S11. Read Full Text.
Effect of pulse width of a variable square pulse (VSP) erbium:YAG laser on the treatment outcome of periorbital wrinkles in Asians. Woraphong Manuskiatti, Sujittra Siriphukpong, Supenya Varothai, Rungsima Wanitphakdeedecha, and Richard E. Fitzpatrick. International Journal of Dermatology 2010, 49, 200–206. Read Full Text.
Collagen synthesis after laser skin resurfacing of the periocular skin. Matej Beltram, Marko Živin, Brigita Drnovšek-Olup. Zdrav Vestn Supl, 2010, 79, 111 –116. Read Full Text.
New Rejuvenation of the Lips with Erbium:YAG and Nd:YAG laser. Natasa Teovska Mitrevska. J LA&HA - J Laser Health Acad 2018; 2018(1):S10. Read Full Text.
LipLase®
New Rejuvenation of the Lips with Erbium:YAG and Nd:YAG laser. Natasa Teovska Mitrevska. J LA&HA - J Laser Health Acad 2018; 2018(1):S10. Read Full Text.
The effect of intraoral 2,940nm nonablative Erbium:YAG laser on the rejuvenation of the upper lip: a pilot study. Natacha Quezada Gaón, Fernanda Binfa. Surg Cosmet Dermatol 2017;9(1):56-8. Read Full Text.
LipLase® Lip Enhancement Procedure. Shiffman H. Journal of LA&HA. 2015;2018(1):B03. Read Full Text.
Active Acne
Treatment of Acne Vulgaris with 1064 nm Nd:YAG Laser. Ganceviciene R, Meskauskas R, Berzanskyte A. Journal of LA&HA. Vol. 2015, OnlineFirst. Read Full Text.
CASE REPORT: Treatment of Acne Vulgaris with Long-Pulsed 1064 nm Nd:YAG Laser. Sult R. Journal of LA&HA, 2014. Vol.2014(1):57-60. Read Full Text.
Successful therapy of excoriated acne with Nd:YAG laser: a case report. Tlaker, V. Acta dermatovenerologica Alpina, Pannonica, et Adriatica, 26(3), pp.73–75. Read Full Text.
Acne Scars
Evaluation of effectiveness of erbium:yttrium–aluminum–garnet laser on atrophic facial acne scars with 22‐MH z digital ultrasonography in a Turkish population. Burhan Engİn, Zekayi Kutlubay, Özge Karakuş, Gürkan Yardimci, Zafer Doğan, Yalçın Tüzün, Server Serdaroğlu. The Journal of Dermatology 2012; 39: 982–988. Read Full Text.
Resurfacing of Facial Acne Scars With a New Variable-Pulsed Er:YAG Laser in Fitzpatrick Skin Types IV and V. Chathra N, Mysore V. J Cutan Aesthet Surg. 2018;11(1):20-25. doi:10.4103/JCAS.JCAS_4_18. Read Full Text.
Other
Minimally Invasive Skin Rejuvenation With Erbium: YAG Laser Used in Thermal Mode. Karin Kunzi-Rapp, Christine C. Dierickx,Bernard Cambier, and Michael Drosner. Lasers in Surgery and Medicine 38:899–907 (2006). Read Full Text.
Dual Tissue Regeneration: Non-Ablative Resurfacing of Soft Tissues with FotonaSmooth® Mode Er:YAG Laser. Matjaz Lukac, Adrian Gaspar, Franci Bajd. J LA&HA - J Laser Health Acad 2018; 2018(1):01-15. Read Full Text.
* Certain applications discussed in this scientific literature may not yet be cleared by the FDA.
Additional Resources: visit the Laser and Health Academy* website for additional information about medical laser treatments that can be performed with Fotona laser systems.
